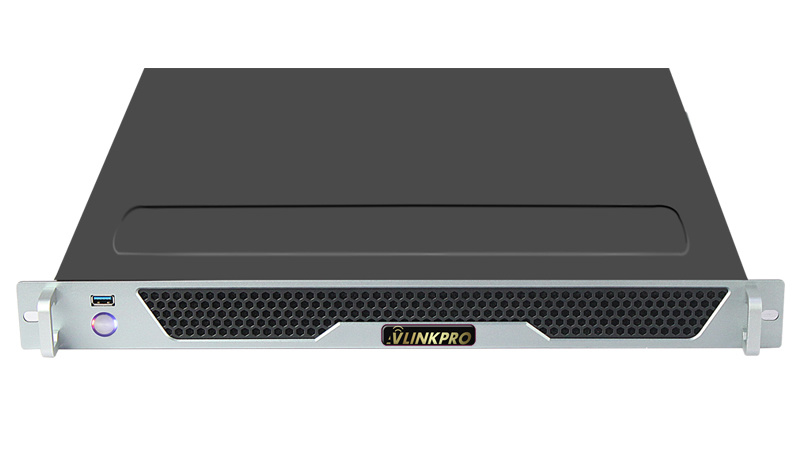

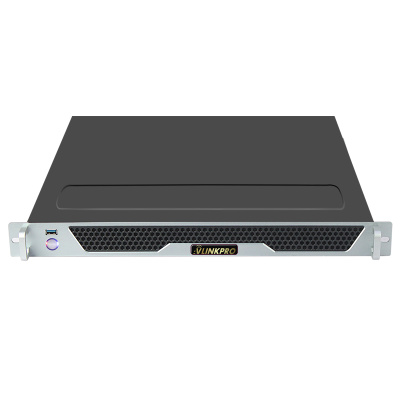

A fully redundant MDU SIP Bridge designed for flexibility in large scale installations.

The AVLinkPro LP360RAD is a SIP/RTSP/TCP/IP Enterprise connecting bridge that allows for medium and large enterprise installations to have full connectivity and adequate expansion. Multiple Unit Dwellings and Campus wide installations can take advantage of video intercom, SIP connected communications, Cross platform control and seamless integration.

• 1U Height Rack Chassis
• Intel® Core Quad Core 2.80GHz Processor
• Redundant 500GB Solid State Data Storage
• Web Based Configuration
• Provides Video Connectivity
• Provides Audio Connectivity
• Simple PBX Functions
• Voicemail with Video
• Audio / Video Paging
• Transcoding Video Stream
• Programmable Trigger Output
• Includes 50 SIP Channels (Expandable to 1000)
• Designed to Handle Large Scale Connections
• Touch Screen Panel to IP Video Bridge
• Can Bridge Telephony Systems
• 2 x Expandable IO Slots
• 2 x LAN 10/100/1000 LAN Ports (VLAN Support)
• 5.1 Channel Audio
• AES67 IP Interoperability Audio Support
• 1 x HDMI Configurable ports
• 1 x GBIC
• Onboard PCIE
• Redundant Power Supplies
• RAID 1 Hot Swap SSD drives
• High Availability ready when paired with a second LP360RAD
  Additional SIP Channel add-on licenses available

• Model: LP-360RAD
